TVS DIODE 5.5VWM 12VC P/WLL-2-2

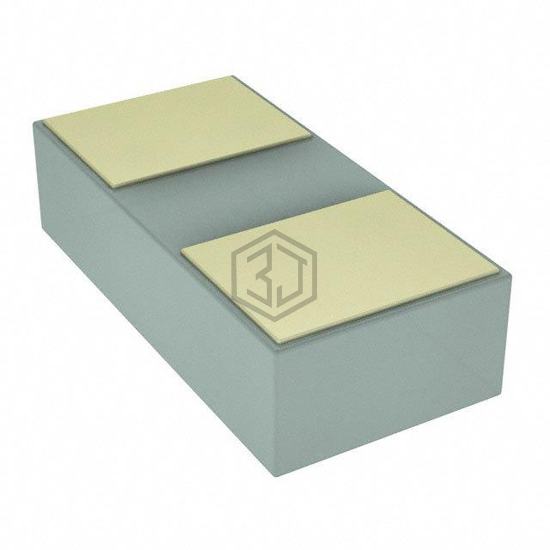

ESD202B1CSP01005XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.5VWM 12VC P/WLL-2-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 01005 (0402 Metric).
In Stock: 37,490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 36W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 6.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | P/PG-WLL-2-2 |
Submit your RFQ for ESD202B1CSP01005XTSA1 and get a quote within 24 hours.
