IGBT MOD 1200V 1400A 7700W

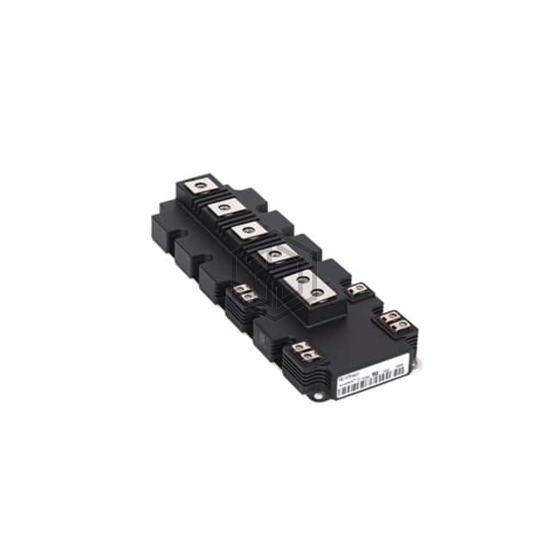

DF1400R12IP4DBOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 1400A 7700W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 1400 A.
In Stock: 88
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| IGBT Type | Trench Field Stop |
| Configuration | Single Chopper |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 1400 A |
| Power - Max | 7700 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 1400A |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 82 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for DF1400R12IP4DBOSA1 and get a quote within 24 hours.
