IC GATE DRVR HALF-BRIDGE 10DFN

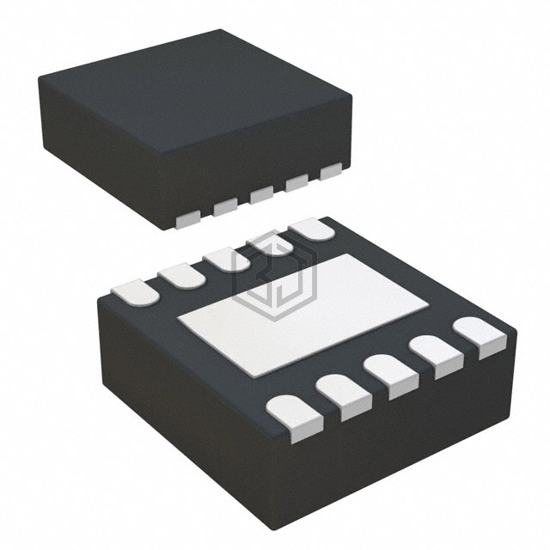

CHL8515CRT is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 10-VFDFN Exposed Pad.
In Stock: 5,050
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.8V, 1V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V |
| Rise / Fall Time (Typ) | 10ns, 8ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
CHL8515CRT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS28225DRBR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SON | 99% | View |
| ISL6605IBZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8SOIC | 95% | View |
| LTC3900IS8#TRPBF | Analog Devices Inc. | IC GATE DRVR LOW-SIDE 8SOIC | 94% | View |
| TPS2811PWLE | Texas Instruments | NAND GATE BASED MOSFET DRIVER | 93% | View |
| ISL6208IRZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8QFN | 92% | View |
| STSR2PMCD | STMicroelectronics | IC GATE DRVR LOW-SIDE 8SO | 78% | View |
Submit your RFQ for CHL8515CRT and get a quote within 24 hours.
