N-CHANNEL POWER MOSFET

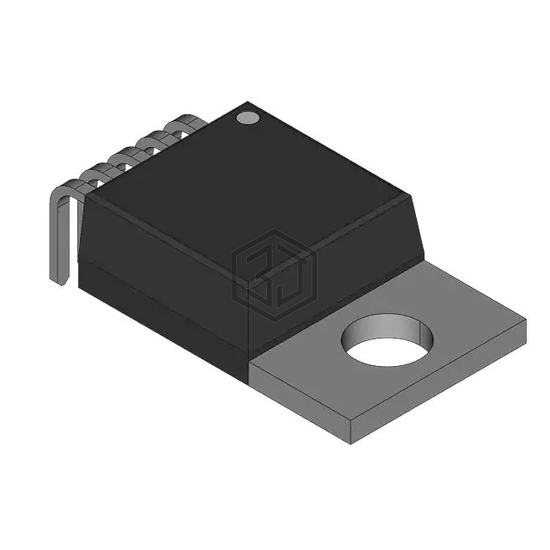

BTS244ZE3062AATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB.
In Stock: 47,750
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 130µA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2660 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 170W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO263-5-2 |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB |
Submit your RFQ for BTS244ZE3062AATMA1 and get a quote within 24 hours.
