HALF-BRIDGE PERIPHERAL DRIVER

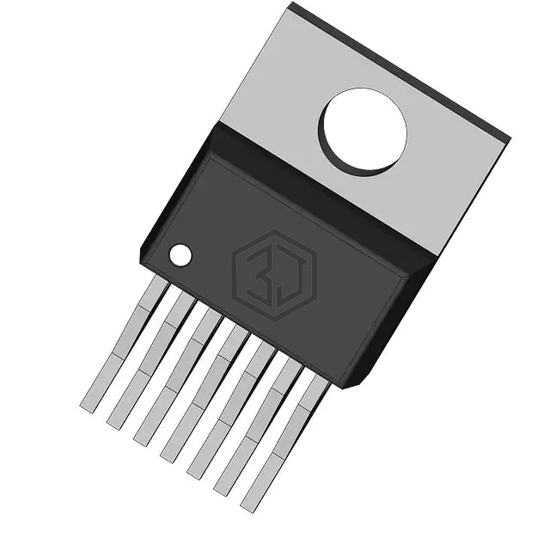

BTN7970S is a PMIC - Motor Drivers, Controllers manufactured by Infineon Technologies. HALF-BRIDGE PERIPHERAL DRIVER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 8V ~ 18V, package / case TO-220-7 Formed Leads.
In Stock: 7,462
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge |
| Interface | - |
| Technology | DMOS |
| Step Resolution | - |
| Applications | Automotive |
| Current - Output | 90A |
| Voltage - Supply | 8V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads |
| Supplier Device Package | P-TO220-7-11 |
BTN7970S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTN7970SAKSA1 | Infineon Technologies | IC MOTOR DRIVER 8V-18V TO220-7 | 86% | View |
| BTN7970PAKSA1 | Infineon Technologies | IC MOTOR DRIVER 8V-18V TO220-7 | 86% | View |
| BTN7960PAKSA1 | Infineon Technologies | IC MOTOR DRIVER 8V-18V TO220-7 | 65% | View |
| BTN7960S | Infineon Technologies | IC MOTOR DRIVER 8V-18V TO220-7 | 65% | View |
Submit your RFQ for BTN7970S and get a quote within 24 hours.
