MOSFET P-CH 20V 630MA SOT323-3

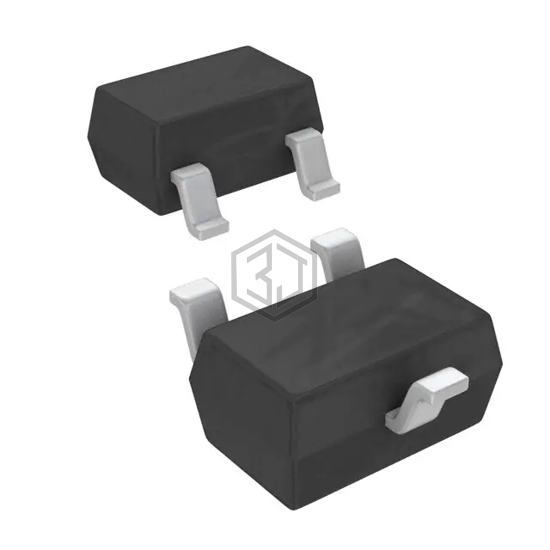

BSS209PWH6327XTSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 20V 630MA SOT323-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 1,718
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 630mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 630mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 3.5µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.3 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 115 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 300mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT323 |
| Package / Case | SC-70, SOT-323 |
Submit your RFQ for BSS209PWH6327XTSA1 and get a quote within 24 hours.
