MOSFET N-CH 20V 3.8A SC59

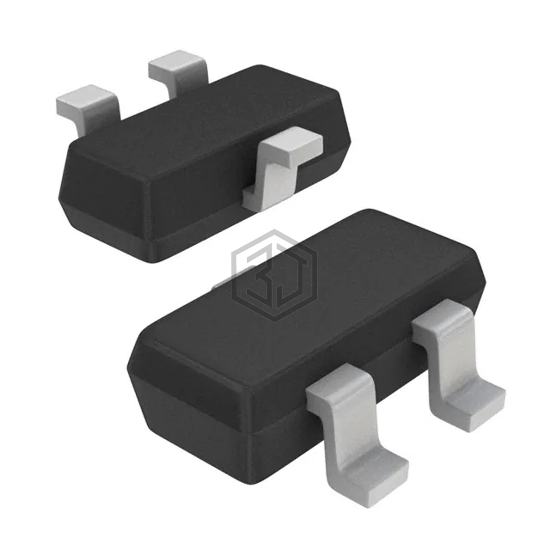

BSR202NL6327HTSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 3.8A SC59. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 27,641
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 3.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 30µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.8 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1147 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SC59-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for BSR202NL6327HTSA1 and get a quote within 24 hours.
