IGBT MODULE 1200V 50A

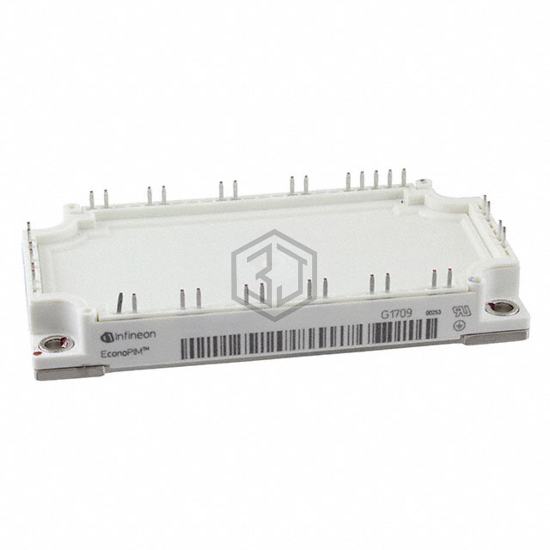

BSM50GP120BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 50A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 80 A.
In Stock: 2,384
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| IGBT Type | - |
| Configuration | 3 Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 80 A |
| Power - Max | - |
| Vce(on) (Max) @ Vge, Ic | 2.55V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 3.3 pF @ 25 V |
| Input | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for BSM50GP120BOSA1 and get a quote within 24 hours.
