N-CHANNEL POWER MOSFET

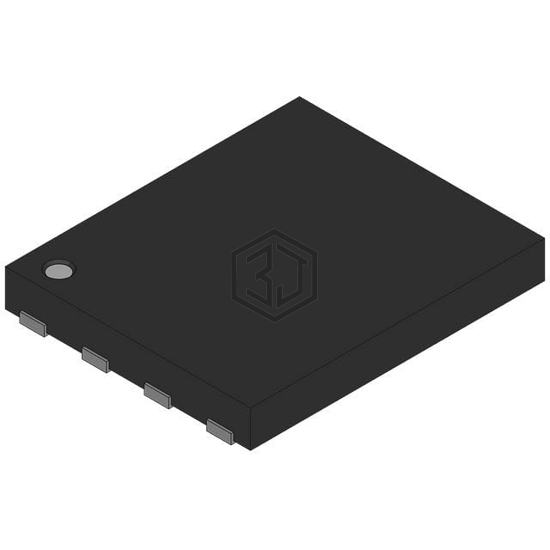

BSC029N025SG is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 8,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.9mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 80µA |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5090 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 78W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-1 |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for BSC029N025SG and get a quote within 24 hours.
