MOSFET N-CH 25V 36A/163A 2WDSON

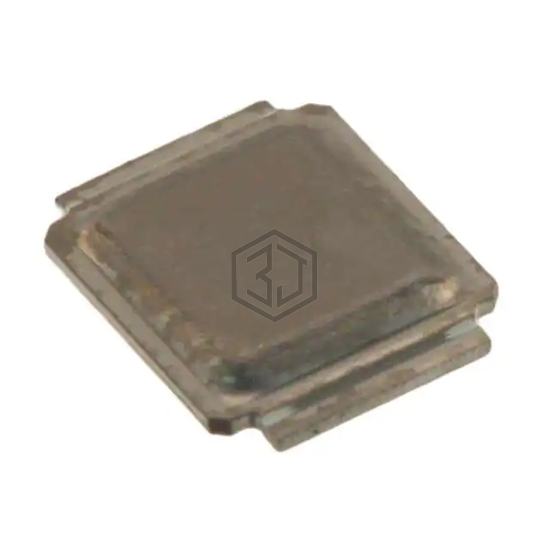

BSB013NE2LXIXUMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 36A/163A 2WDSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 3-WDSON.
In Stock: 19,409
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Ta), 163A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.3mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4400 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 57W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | MG-WDSON-2, CanPAK M™ |
| Package / Case | 3-WDSON |
Submit your RFQ for BSB013NE2LXIXUMA1 and get a quote within 24 hours.
