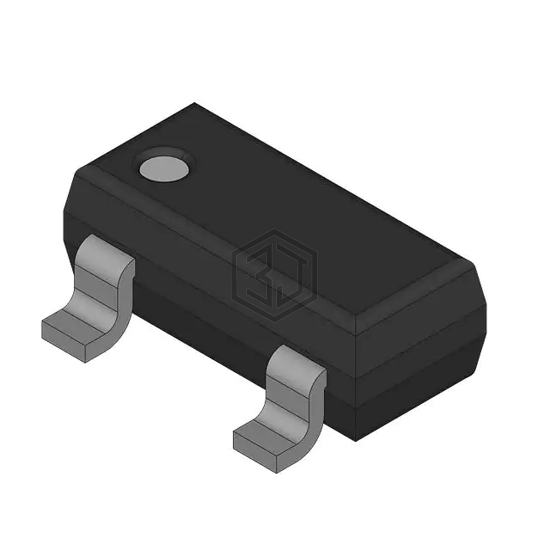

BAW156
RECTIFIER DIODE
BAW156 is a Diodes - Rectifiers - Arrays manufactured by Infineon Technologies. RECTIFIER DIODE. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 180,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Current - Average Rectified (Io) (per Diode) | 140mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 50 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 µs |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT23-3 (TO-236) |
Frequently Asked Questions
BAW156 is a Diodes - Rectifiers - Arrays manufactured by Infineon Technologies. RECTIFIER DIODE
The mounting type of BAW156 is Surface Mount.
The package type of BAW156 is TO-236-3, SC-59, SOT-23-3.
Yes, BAW156 is listed as Obsolete. Consider requesting a quote for alternative parts.
