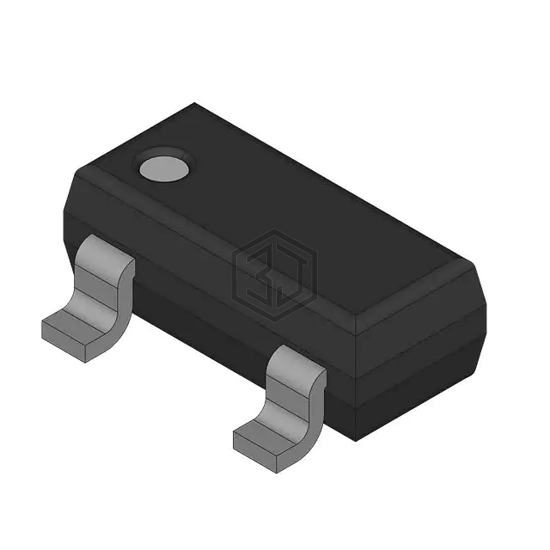

BAT54-05E6327
SCHOTTKY DIODE
BAT54-05E6327 is a Diodes - Rectifiers - Arrays manufactured by Infineon Technologies. SCHOTTKY DIODE. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 41,151
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | PG-SOT23-3-3 |
Frequently Asked Questions
BAT54-05E6327 is a Diodes - Rectifiers - Arrays manufactured by Infineon Technologies. SCHOTTKY DIODE
The mounting type of BAT54-05E6327 is Surface Mount.
The package type of BAT54-05E6327 is TO-236-3, SC-59, SOT-23-3.
