3J LIMITED

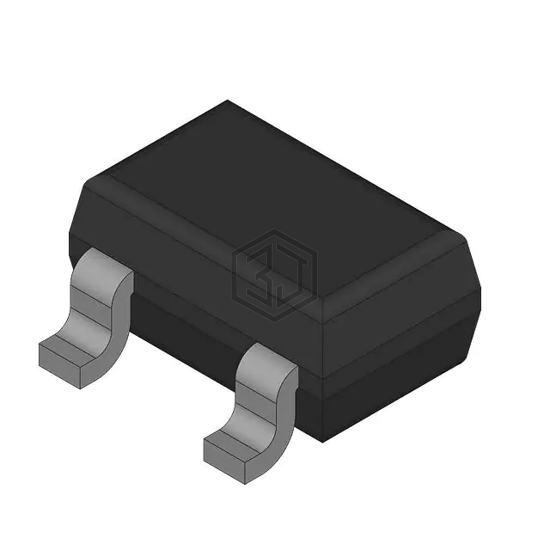

BAS16WH6327
HIGH SPEED SWITCHING DIODE
BAS16WH6327 is a Diodes - Rectifiers - Single manufactured by Infineon Technologies. HIGH SPEED SWITCHING DIODE. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 69,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Operating Temperature - Junction | 150°C (Max) |
Frequently Asked Questions
BAS16WH6327 is a Diodes - Rectifiers - Single manufactured by Infineon Technologies. HIGH SPEED SWITCHING DIODE
The mounting type of BAS16WH6327 is Surface Mount.
The package type of BAS16WH6327 is SC-70, SOT-323.
