AUIRFN7107 - 75V-100V N-CHANNEL

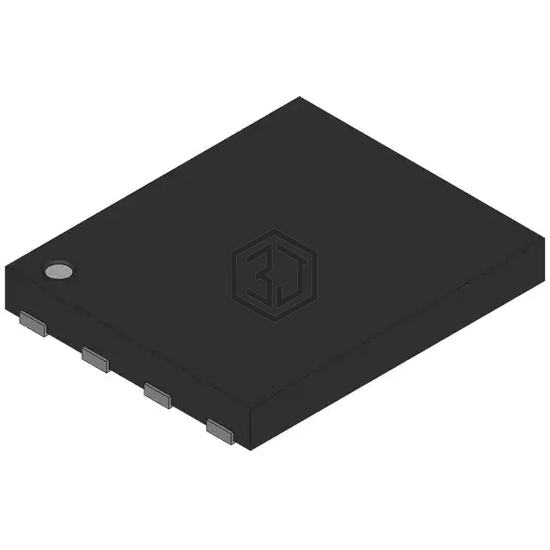

AUIRFN7107TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. AUIRFN7107 - 75V-100V N-CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 45A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 77 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3001 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.4W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for AUIRFN7107TR and get a quote within 24 hours.
