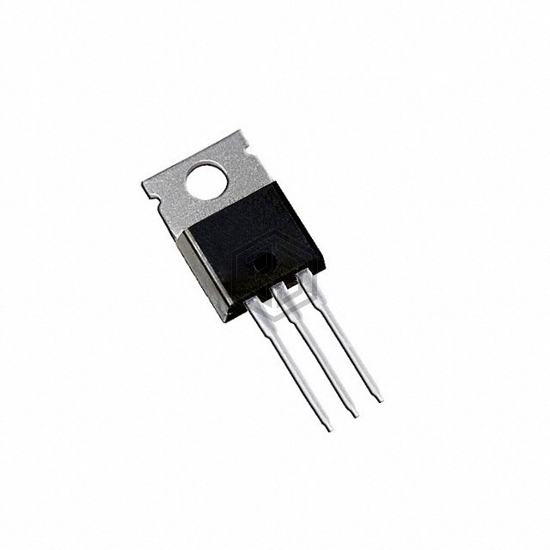

MOSFET N-CH 100V 75A TO220AB
AUIRFB4410 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 75A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 58A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5150 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Submit your RFQ for AUIRFB4410 and get a quote within 24 hours.
