MOSFET N-CH 40V 27A DIRECTFET

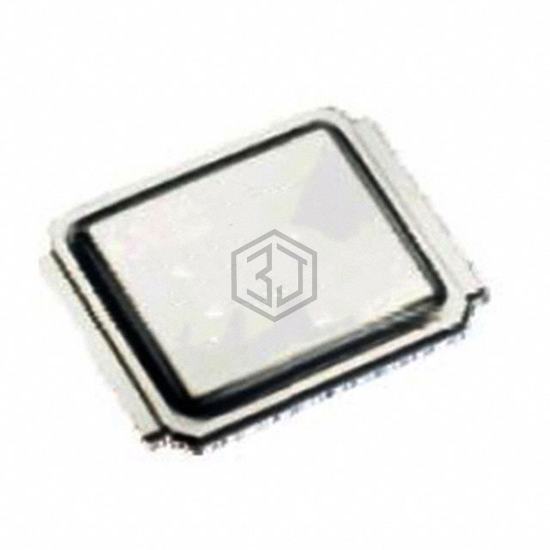

AUIRF8736M2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 27A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric M4.
In Stock: 9,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 137A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 85A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 204 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6867 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric M4 |
| Package / Case | DirectFET™ Isometric M4 |
Submit your RFQ for AUIRF8736M2TR and get a quote within 24 hours.
