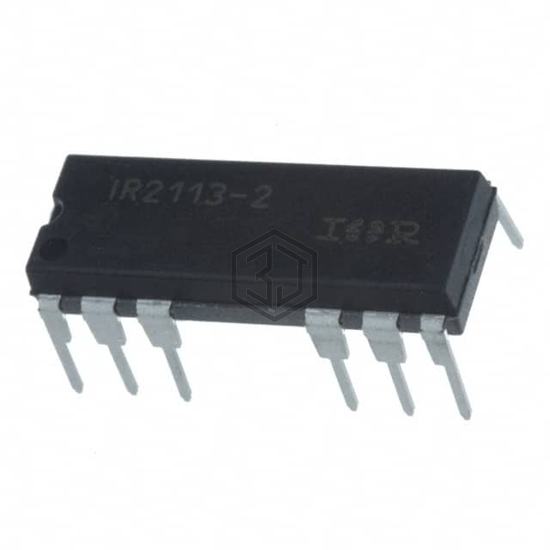

IC GATE DRVR HALF-BRIDGE 16DIP
98-0119PBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V ~ 20V, package / case 16-DIP (0.300", 7.62mm), 14 Leads.
In Stock: 9,213
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 3.3V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm), 14 Leads |
| Supplier Device Package | 16-PDIP |
98-0119PBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2113 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DIP | 100% | View |
| IR2113-1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DIP | 100% | View |
| IR2113-1PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DIP | 100% | View |
| IR2110PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DIP | 98% | View |
| IR2213PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DIP | 79% | View |
| IXDF602PI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DIP | 61% | View |
Submit your RFQ for 98-0119PBF and get a quote within 24 hours.
