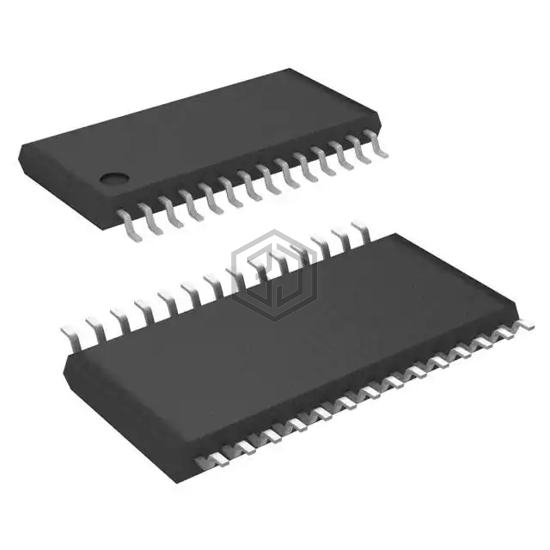

IC GATE DRVR HALF-BRIDGE 28TSSOP
6ED003L02F2XUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 28TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 13V ~ 17.5V, package / case 28-TSSOP (0.173", 4.40mm Width).
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 13V ~ 17.5V |
| Logic Voltage - VIL, VIH | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink) | - |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 620 V |
| Rise / Fall Time (Typ) | 60ns, 26ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | PG-TSSOP-28 |
Submit your RFQ for 6ED003L02F2XUMA1 and get a quote within 24 hours.
