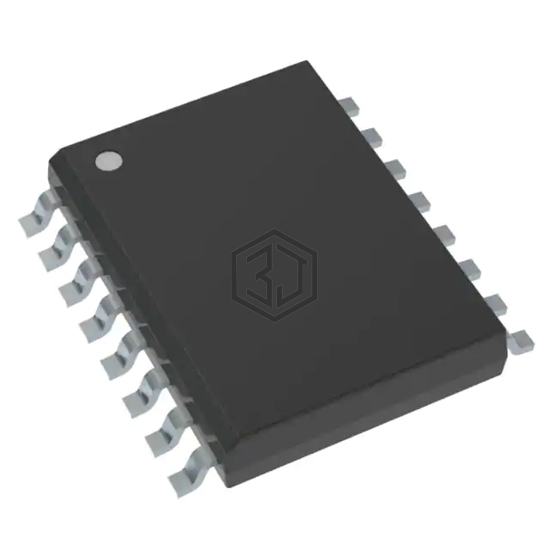

IC GATE DRIVER HALF-BRIDGE DSO16
2EDS8165HXUMA2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRIVER HALF-BRIDGE DSO16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 20V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 5,757
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 20V |
| Logic Voltage - VIL, VIH | -, 1.65V |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-16-30 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5109BQNGTTQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 73% | View |
| LM5109BSDX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 73% | View |
| IRS2011SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 68% | View |
| LM25101CMA/NOPB | National Semiconductor | LM25101 3A, 2A AND 1A HIGH VOLTA | 63% | View |
| LM5100CMAX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 63% | View |
| LM5100CMYE/NOPB | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 63% | View |
Submit your RFQ for 2EDS8165HXUMA2 and get a quote within 24 hours.
