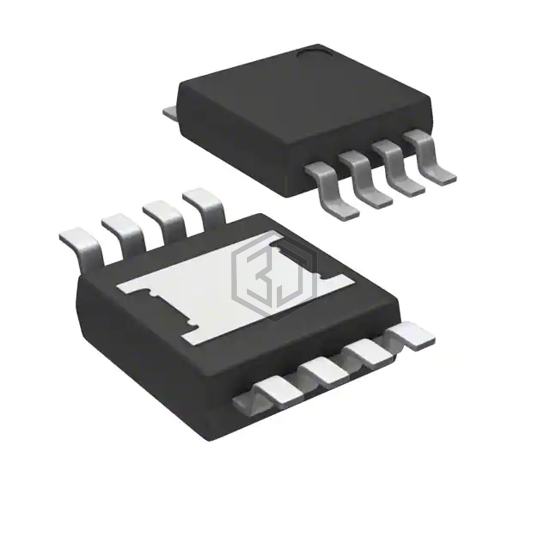

IC GATE DRVR LOW-SIDE 8TSSOP
2EDN7424RXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR LOW-SIDE 8TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 20V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 2,109
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6.4ns, 5.4ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | PG-TSSOP-8 |
2EDN7424RXUMA1 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14E3T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 89% | View |
| ADP3633ARHZ-RL | Analog Devices Inc. | IC GATE DRVR LOW-SIDE 8MSOP | 85% | View |
| UCC27324D | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 83% | View |
| MAX17600ASA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8SOIC | 79% | View |
| MAX17600AUA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 79% | View |
| IRS21867STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 75% | View |
Submit your RFQ for 2EDN7424RXUMA1 and get a quote within 24 hours.
