INT. POWERSTAGE/DRIVER

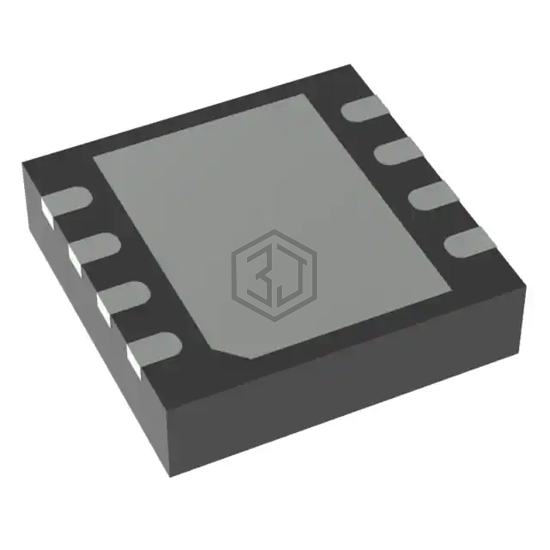

2EDL8024GXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. INT. POWERSTAGE/DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 17V, package / case 8-VDFN Exposed Pad.
In Stock: 6,113
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side and Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 17V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 90 V |
| Rise / Fall Time (Typ) | 45ns, 45ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | PG-VDSON-8-4 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX17605AUA+ | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 87% | View |
| UCC27425DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 77% | View |
| UCC27210DDAR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOPWR | 76% | View |
| UMWIRS21864STR | UMW | IC GATE DRVR HI/LOW SIDE 14SOIC | 76% | View |
| MCP14E4T-E/SNVAO | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 74% | View |
| UCC21222DR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 16SOIC | 60% | View |
Submit your RFQ for 2EDL8024GXUMA1 and get a quote within 24 hours.
