INT. POWERSTAGE/DRIVER

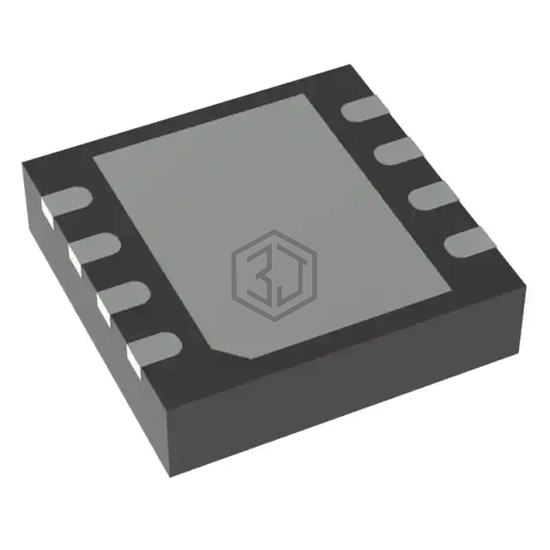

2EDL8023GXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. INT. POWERSTAGE/DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 17V, package / case 8-VDFN Exposed Pad.
In Stock: 5,297
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side and Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 17V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 90 V |
| Rise / Fall Time (Typ) | 45ns, 45ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | PG-VDSON-8-4 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2EDL8123G3CXTMA1 | Infineon Technologies | INT. POWERSTAGE/DRIVER | 96% | View |
| MPQ1922GV-AEC1-Z | Monolithic Power Systems Inc. | 100V, 3A, HALF-BRIDGE PRE-DRIVER | 95% | View |
| FAN8811MNTXG | onsemi | HIGH-FREQUENCY, HIGH SIDE AND LO | 78% | View |
| ISL2111ARTZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 10TDFN | 77% | View |
| UCC27201ATDA2 | Texas Instruments | IC GATE DRVR HALF-BRIDGE DIE | 76% | View |
| LM5101ASDX-1/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 75% | View |
Submit your RFQ for 2EDL8023GXUMA1 and get a quote within 24 hours.
