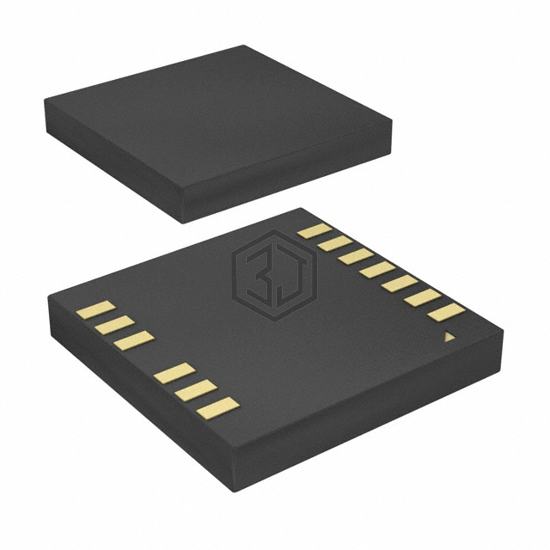

IC GATE DRVR HALF-BRIDG TFLGA-13
2EDF7235KXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDG TFLGA-13. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 20V, package / case 13-TFLGA.
In Stock: 1,293
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 20V |
| Logic Voltage - VIL, VIH | -, 1.65V |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 13-TFLGA |
| Supplier Device Package | PG-TFLGA-13-1 |
2EDF7235KXUMA1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NSD16241-DSPKR | NOVOSENSE | 1200V HALF BRIDGE GATE DRIVER | 83% | View |
| NSD16242-Q1SPR | NOVOSENSE | 700V HALF BRIDGE GATE DRIVER | 83% | View |
| NSD1624-DLAJR | NOVOSENSE | 1200V HALF BRIDGE GATE DRIVER | 83% | View |
| UCC37324DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 59% | View |
| MAX17600ASA+ | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8SOIC | 50% | View |
| MAX17603ASA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8SOIC | 50% | View |
Submit your RFQ for 2EDF7235KXUMA1 and get a quote within 24 hours.
