48 V SMART HIGH-SIDE MOSFET GATE

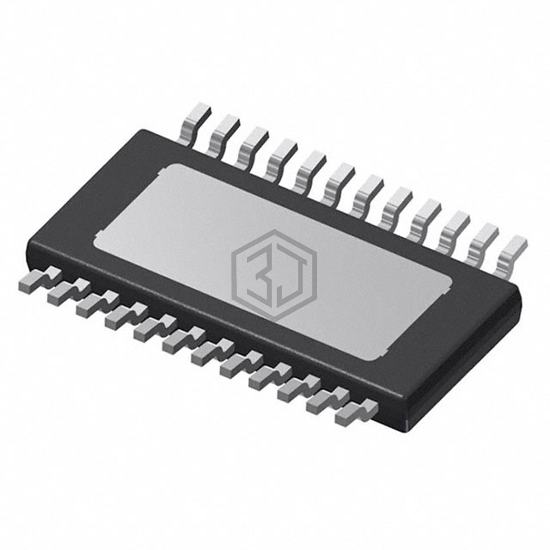

2ED4820EMXUMA2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. 48 V SMART HIGH-SIDE MOSFET GATE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 2,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 3V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.7V, 2.1V |
| Current - Peak Output (Source, Sink) | 300mA, 300mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-24 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS21064SPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 14SOIC | 79% | View |
| FAN7842MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 77% | View |
| FAN7382M1X | onsemi | IC GATE DRVR HALF-BRIDGE 14SOP | 77% | View |
| L6390DTR | STMicroelectronics | IC GATE DRVR HALF-BRIDGE 16SO | 70% | View |
| FAN73833MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 69% | View |
| FAN7385MX | onsemi | IC GATE DRVR HIGH-SIDE 14SOP | 69% | View |
Submit your RFQ for 2ED4820EMXUMA2 and get a quote within 24 hours.
