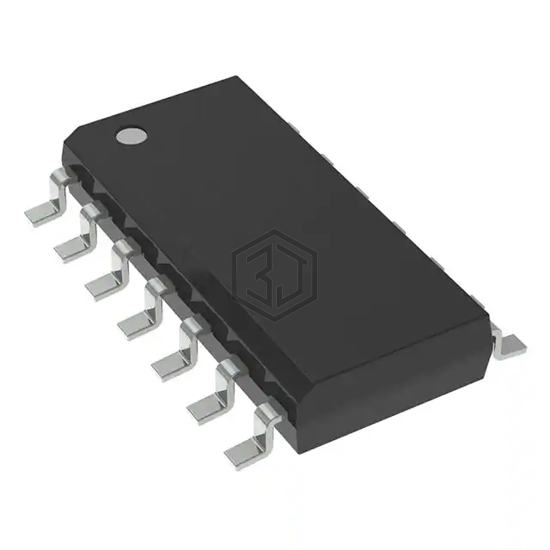

IC GATE DRIVER DSO-14
2ED21064S06JXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRIVER DSO-14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 2,490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side and Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink) | 290mA, 700mA |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 20 V |
| Rise / Fall Time (Typ) | 100ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-14 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2106SPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 80% | View |
| IRS21064SPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 14SOIC | 80% | View |
| IRS2106STRPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 80% | View |
| DGD2005S8-13 | Diodes Incorporated | IC GATE DRV HALF-BRIDGE 8SO 2.5K | 77% | View |
| IRS2304SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 75% | View |
| IRS2112STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 16SOIC | 64% | View |
Submit your RFQ for 2ED21064S06JXUMA1 and get a quote within 24 hours.
