IC GATE DRVR HALF-BRIDG DSO36-58

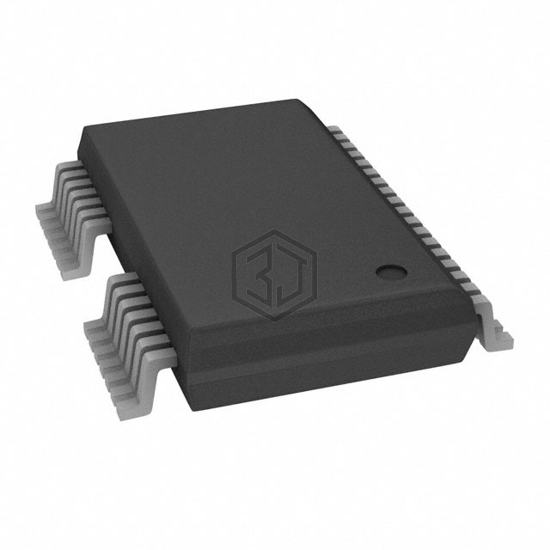

2ED020I12FAXUMA2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDG DSO36-58. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13V ~ 20V, package / case 36-BSSOP (0.295", 7.50mm Width), 32 Leads.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 13V ~ 20V |
| Logic Voltage - VIL, VIH | 1.5V, 3.5V |
| Current - Peak Output (Source, Sink) | 2.4A, 2.4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Rise / Fall Time (Typ) | 30ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width), 32 Leads |
| Supplier Device Package | PG-DSO-36-58 |
2ED020I12FAXUMA2 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS44262SPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 88% | View |
| IRS44262STRPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 88% | View |
| 2EDL23I06PJXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE DSO14 | 82% | View |
| IRS4426STRPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 80% | View |
| IRS4426SPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 80% | View |
| IR25600SPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 73% | View |
Submit your RFQ for 2ED020I12FAXUMA2 and get a quote within 24 hours.
