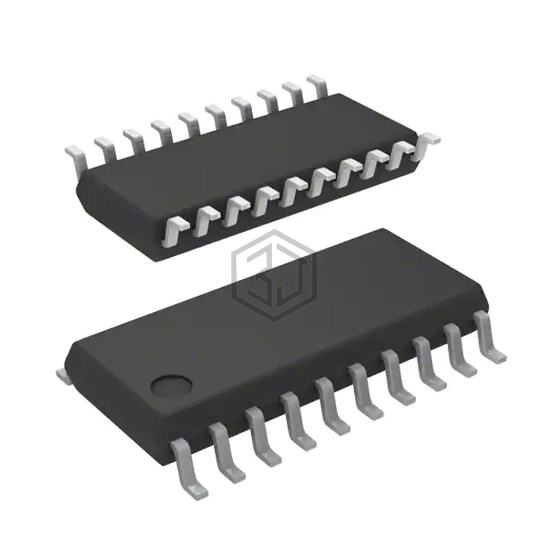

IC GATE DRVR HALF-BRIDGE DSO18-2
2ED020I06FIXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE DSO18-2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 14V ~ 18V, package / case 18-SOIC (0.295", 7.50mm Width).
In Stock: 24,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 14V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 650 V |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-18-2 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2011SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 82% | View |
| LM5109BMAX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 75% | View |
| LM5109AMAX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 75% | View |
| LM5109BSD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 75% | View |
| MIC4605-2YM | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 74% | View |
| MIC4606-1YTS-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 16TSSOP | 66% | View |
Submit your RFQ for 2ED020I06FIXUMA1 and get a quote within 24 hours.
