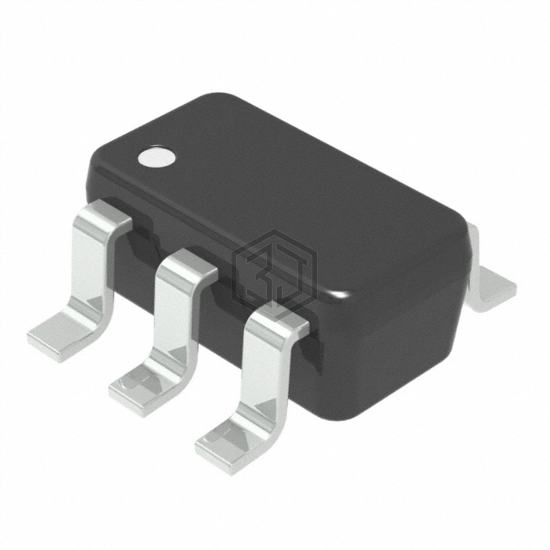

IC GATE DRVR HIGH-SIDE SOT23-6
1EDN7550BXTSA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HIGH-SIDE SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 20V, package / case SOT-23-6.
In Stock: 4,125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 84 V |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | PG-SOT23-6 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 1EDN7512BXTSA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE SOT23-5 | 100% | View |
| 1EDN8550BXTSA1 | Infineon Technologies | IC GATE DRVR HIGH-SIDE SOT23-6 | 100% | View |
| UCC27518AQDBVRQ1 | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 97% | View |
| MAX15024BATB+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 10TDFN | 74% | View |
| FAN73711MX | onsemi | IC GATE DRVR HIGH-SIDE 8SOIC | 53% | View |
| FAN7171MX-F085P | onsemi | IC GATE DRVR HIGH-SIDE 8SOIC | 53% | View |
Submit your RFQ for 1EDN7550BXTSA1 and get a quote within 24 hours.
