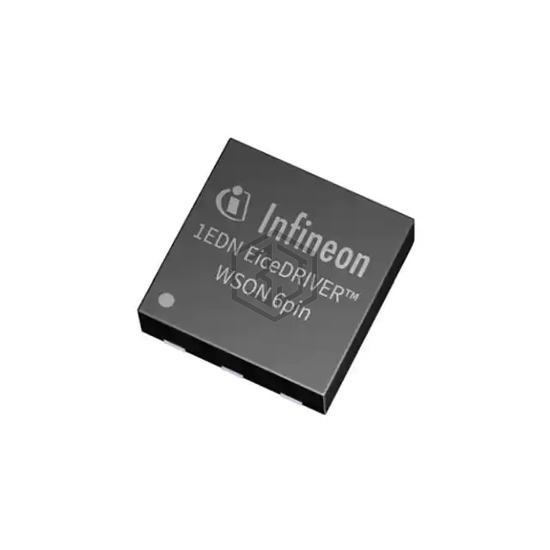

IC GATE DRVR LOW-SIDE 6WSON
1EDN7512GXTMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR LOW-SIDE 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 20V, package / case 6-WDFN Exposed Pad.
In Stock: 3,025
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | PG-WSON-6-1 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 1EDN8511BXTSA1 | Infineon Technologies | IC GATE DRV HALF BRD/LOW SOT23-6 | 100% | View |
| UCC27517AQDBVRQ1 | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 97% | View |
| 1EDN8511BXUSA1 | Infineon Technologies | IC GATE DRV HALF BRD/LOW SOT23-6 | 91% | View |
| 1EDN8511B | Infineon Technologies | 1EDN8511 - GATE DRIVER | 89% | View |
| SP001690382 | Infineon Technologies | 1EDN7550 - GATE DRIVER | 89% | View |
| NCD5701ADR2G | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 61% | View |
Submit your RFQ for 1EDN7512GXTMA1 and get a quote within 24 hours.
