INT. POWERSTAGE/DRIVER PG-VSON-1

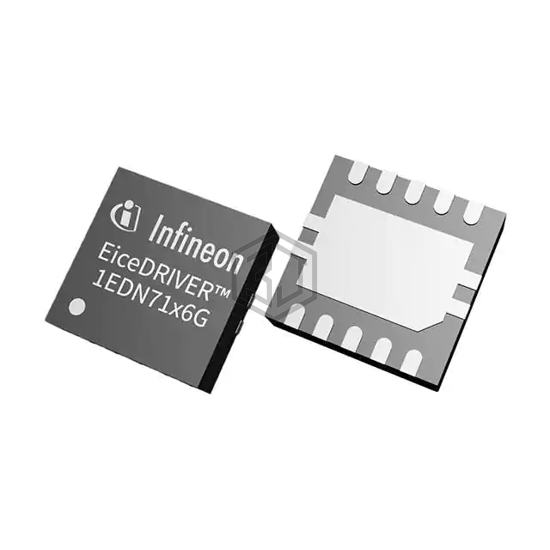

1EDN7126GXTMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. INT. POWERSTAGE/DRIVER PG-VSON-1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.2V ~ 11V, package / case 10-VFDFN Exposed Pad.
In Stock: 3,201
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.2V ~ 11V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 4ns, 4ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | PG-VSON-10-4 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IX4428NTR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 85% | View |
| MCP14A0154T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 83% | View |
| MIC4127YME-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 74% | View |
| MIC4427YM-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 74% | View |
| TC4428AVOA713-VAO | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 74% | View |
| TC4427AVOA-VAO | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 74% | View |
Submit your RFQ for 1EDN7126GXTMA1 and get a quote within 24 hours.
