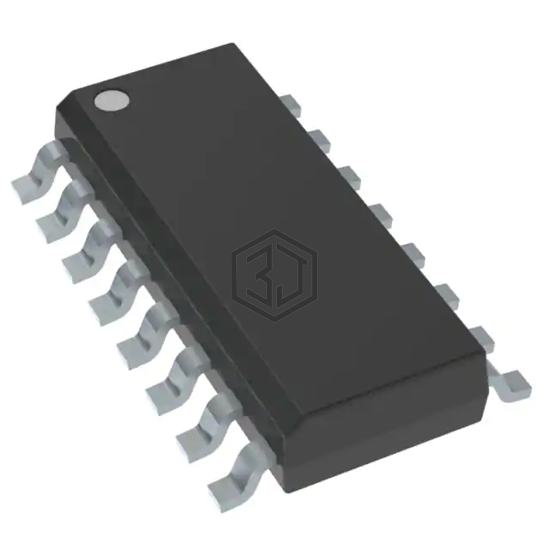

IC DRIVER IC GAN DSO-16-11
1EDF5673FXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC DRIVER IC GAN DSO-16-11. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UL, VDE.
In Stock: 9,430
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 44ns, 44ns |
| Pulse Width Distortion (Max) | 18ns (Typ) |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Current - Output High, Low | 4A, 8A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 3.13V ~ 3.47V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-16-11 |
| Approval Agency | CQC, CSA, UL, VDE |
Submit your RFQ for 1EDF5673FXUMA1 and get a quote within 24 hours.
