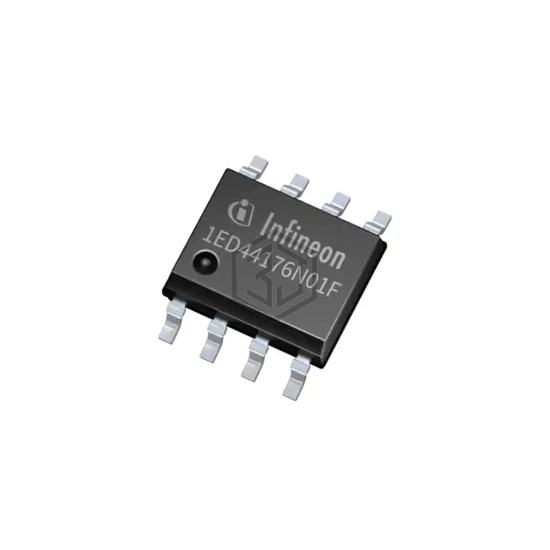

IC LOW SIDE GATE DRIVER 25V DSO8
1ED44176N01FXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC LOW SIDE GATE DRIVER 25V DSO8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 12.7V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 6,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 12.7V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.7V |
| Current - Peak Output (Source, Sink) | 800mA, 1.75A |
| Input Type | CMOS, TTL |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 50ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PM8851D | STMicroelectronics | IC GATE DRVR LOW-SIDE SOT23-6 | 82% | View |
| PM8841D | STMicroelectronics | IC GATE DRVR LOW-SIDE SOT23-5 | 82% | View |
| L9857-TR | STMicroelectronics | IC GATE DRVR HIGH-SIDE 8SO | 78% | View |
| TC1411NVUA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 71% | View |
| TC1411VUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 71% | View |
| TC1411NVOA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 71% | View |
Submit your RFQ for 1ED44176N01FXUMA1 and get a quote within 24 hours.
