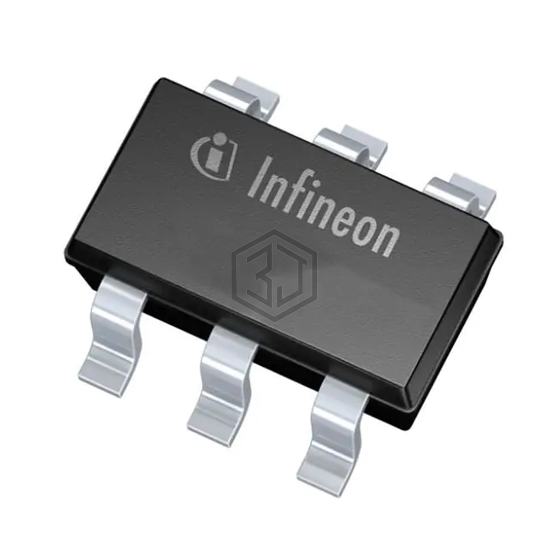

IC GATE DRVR LOW-SIDE SOT23-6
1ED44175N01BXTSA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR LOW-SIDE SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 12.7V ~ 20V, package / case SOT-23-6.
In Stock: 2,809
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 12.7V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.9V |
| Current - Peak Output (Source, Sink) | 2.6A, 2.6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 5ns, 5ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | PG-SOT23-6-3 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 1ED44171N01BXTSA1 | Infineon Technologies | SINGLE-CHANNEL LOW-SIDE GATE DRI | 100% | View |
| 1ED44173N01BXTSA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE SOT23-6 | 95% | View |
| UCC27533DBVR | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 83% | View |
| UCC27536DBVT | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 83% | View |
| MCP14A0301-E/MS | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8MSOP | 68% | View |
| MCP14A0302-E/MS | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8MSOP | 68% | View |
Submit your RFQ for 1ED44175N01BXTSA1 and get a quote within 24 hours.
