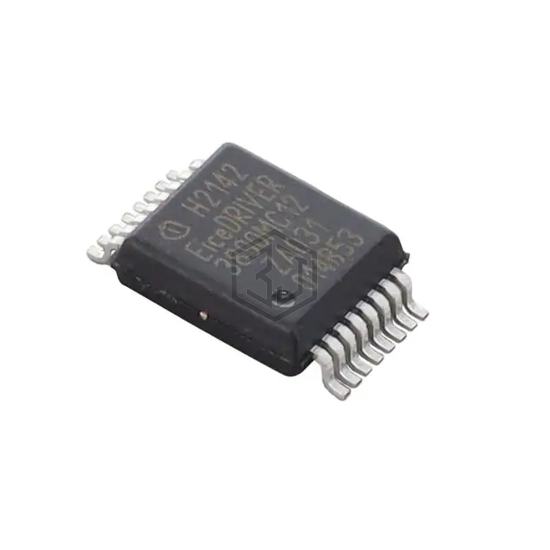

ISOLATED DRIVER PG-DSO-16
1ED3890MC12MXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. ISOLATED DRIVER PG-DSO-16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-BSSOP (0.295", 7.50mm Width), approval agency UL, VDE.
In Stock: 9,007
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 200V/ns |
| Propagation Delay tpLH / tpHL (Max) | 270ns, 262ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Current - Output High, Low | 9A, 9A |
| Current - Peak Output | 9A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 13V ~ 25V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-16-28 |
| Approval Agency | UL, VDE |
Submit your RFQ for 1ED3890MC12MXUMA1 and get a quote within 24 hours.
