ISOLATED GATE DRIVER

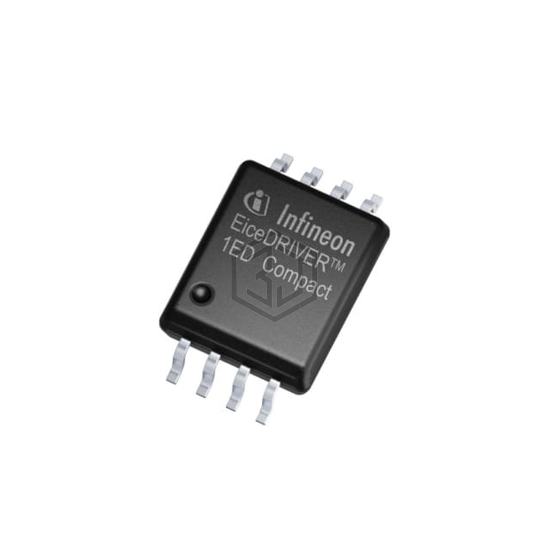

1ED3240MC12HXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. ISOLATED GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL, VDE.
In Stock: 2,645
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | - |
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 200kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 110ns, 110ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 9ns, 8.5ns |
| Current - Output High, Low | 10A, 10A |
| Current - Peak Output | 10A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 10V ~ 35V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-8-66 |
| Approval Agency | UL, VDE |
Submit your RFQ for 1ED3240MC12HXUMA1 and get a quote within 24 hours.
