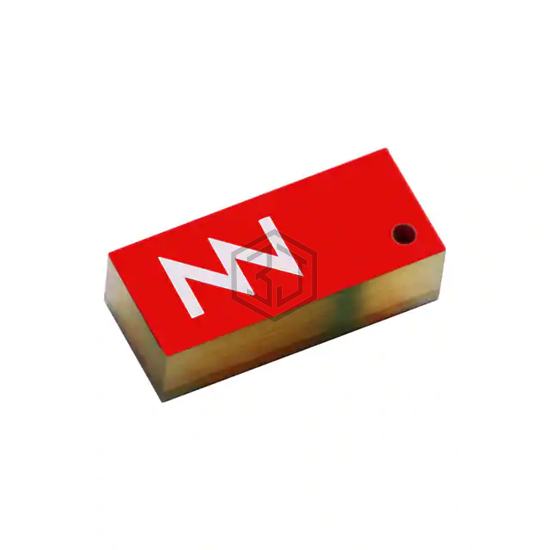

NN03-320
DUO MXTEND MULTIBAND ANTENNA
NN03-320 is a RF Antennas manufactured by Ignion. DUO MXTEND MULTIBAND ANTENNA. Key specifications: mounting type Surface Mount, termination Solder, frequency range 1.56GHz ~ 10.6GHz.
In Stock: 2,427
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | GPS, Navigation |
| Frequency Group | Ultra Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.4Ghz, 4.0GHz, 4.5GHz, 5.0GHz , 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz |
| Frequency Range | 1.56GHz ~ 10.6GHz |
| Antenna Type | Chip |
| Number of Bands | 3 |
| VSWR | 2.5 |
| Return Loss | - |
| Gain | 2.6dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.079" (2.00mm) |
| Applications | 5G, Beidou, BT, Galileo, GNSS, GPS, UWB |
Frequently Asked Questions
NN03-320 is a RF Antennas manufactured by Ignion. DUO MXTEND MULTIBAND ANTENNA
The mounting type of NN03-320 is Surface Mount.
The termination type of NN03-320 is Solder.
The frequency of NN03-320 is 1.56GHz ~ 10.6GHz.
