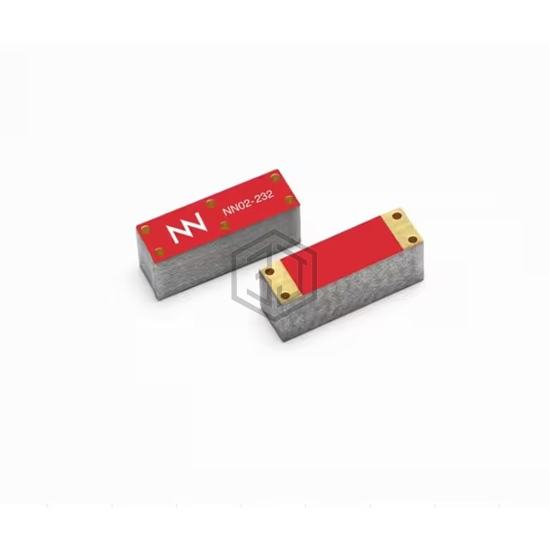

NN02-232
BAR MXTEND MULTIBAND ANTENNA
NN02-232 is a RF Antennas manufactured by Ignion. BAR MXTEND MULTIBAND ANTENNA. Key specifications: mounting type Surface Mount, termination Solder, frequency range 824MHz ~ 2.69GHz.
In Stock: 1,833
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz |
| Frequency Range | 824MHz ~ 2.69GHz |
| Antenna Type | Chip |
| Number of Bands | 12 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 1.3dBi, 0.3dBi, 3.8dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.126" (3.20mm) |
| Applications | DCS, GSM, LTE, PCS, UMTS |
Frequently Asked Questions
NN02-232 is a RF Antennas manufactured by Ignion. BAR MXTEND MULTIBAND ANTENNA
The mounting type of NN02-232 is Surface Mount.
The termination type of NN02-232 is Solder.
The frequency of NN02-232 is 824MHz ~ 2.69GHz.
Yes, NN02-232 is listed as Obsolete. Consider requesting a quote for alternative parts.
