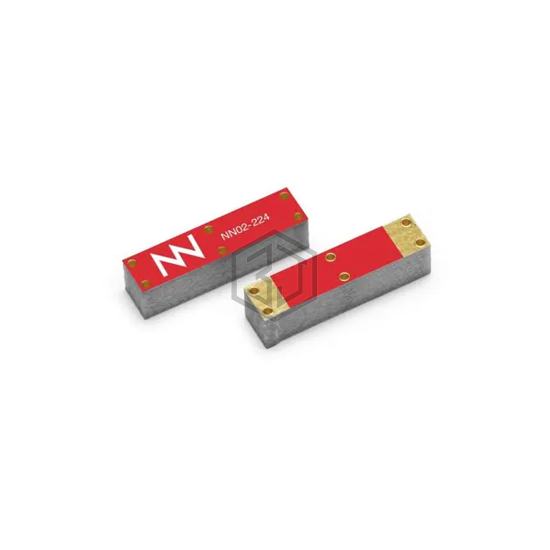

NN02-224
RUN MXTEND MULTIBAND ANTENNA
NN02-224 is a RF Antennas manufactured by Ignion. RUN MXTEND MULTIBAND ANTENNA. Key specifications: mounting type Surface Mount, termination Solder, frequency range 824MHz ~ 5.875GHz.
In Stock: 70,433
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Ultra Wide Band |
| Frequency (Center/Band) | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 3.5GHz, 3.7GHz |
| Frequency Range | 824MHz ~ 5.875GHz |
| Antenna Type | Chip |
| Number of Bands | 14 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 1.9dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.094" (2.40mm) |
| Applications | BT, DCS, GNSS, GSM, LTE, PCS, UMTS, WiFi DB |
Frequently Asked Questions
NN02-224 is a RF Antennas manufactured by Ignion. RUN MXTEND MULTIBAND ANTENNA
The mounting type of NN02-224 is Surface Mount.
The termination type of NN02-224 is Solder.
The frequency of NN02-224 is 824MHz ~ 5.875GHz.
