AC/DC CONVERTER 24V 31W

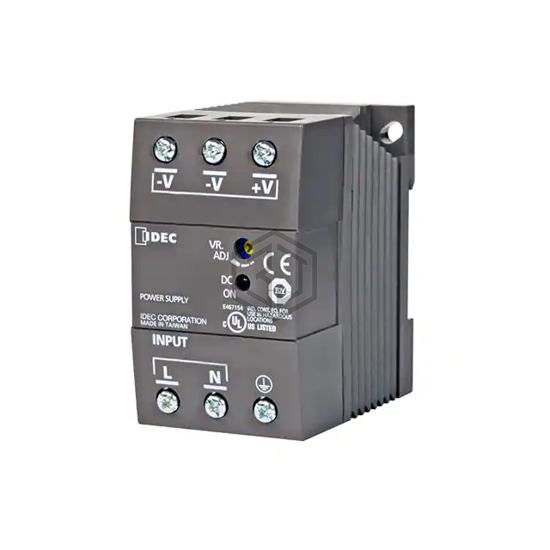

PS5R-VC24 is a Industrial, DIN Rail Power Supplies manufactured by IDEC. AC/DC CONVERTER 24V 31W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 1.3A, size / dimension 3.74" L x 0.89" W x 3.54" H (95.0mm x 22.5mm x 90.0mm), number of outputs 1.
In Stock: 791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.3A |
| Power (Watts) | 31W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 3.74" L x 0.89" W x 3.54" H (95.0mm x 22.5mm x 90.0mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | 62368-1 |
Submit your RFQ for PS5R-VC24 and get a quote within 24 hours.
