AC/DC CONVERTER 24V 7.2W

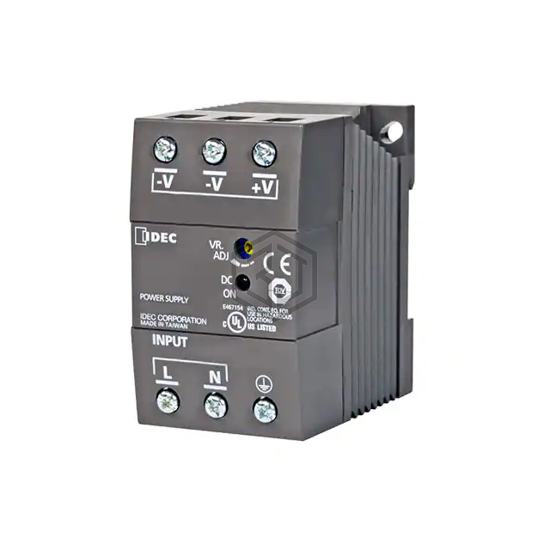

PS5R-VA24 is a Industrial, DIN Rail Power Supplies manufactured by IDEC. AC/DC CONVERTER 24V 7.2W. Key specifications: operating temperature -25°C ~ 75°C (With Derating), current - output (max) 300mA, size / dimension 2.76" L x 1.77" W x 2.95" H (70.0mm x 45.0mm x 75.0mm), number of outputs 1.
In Stock: 178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 300mA |
| Power (Watts) | 7.2W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 80% |
| Operating Temperature | -25°C ~ 75°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 2.76" L x 1.77" W x 2.95" H (70.0mm x 45.0mm x 75.0mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | 62368-1 |
