DIN RAIL PANEL MOUNT POWER SUPPL

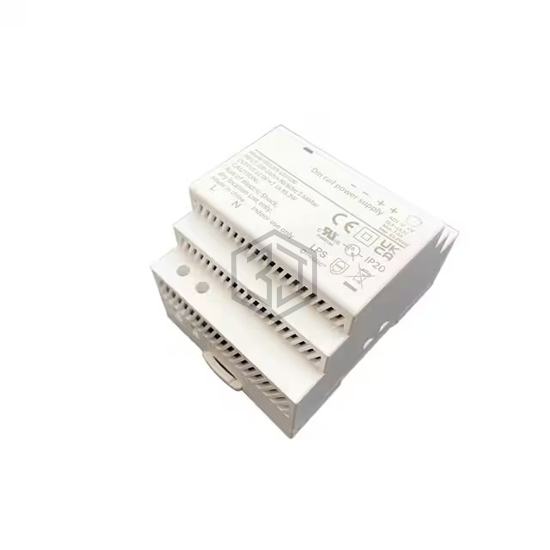

56YSD100S-4802000 is a Industrial, DIN Rail Power Supplies manufactured by Ideal Power Ltd.. DIN RAIL PANEL MOUNT POWER SUPPL. Key specifications: operating temperature -20°C ~ 50°C, current - output (max) 2A, size / dimension 3.54" L x 2.76" W x 2.28" H (90.0mm x 70.0mm x 58.0mm), number of outputs 1.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | 96W |
| Voltage - Isolation | - |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 50°C |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 3.54" L x 2.76" W x 2.28" H (90.0mm x 70.0mm x 58.0mm) |
| Approval Agency | BSMI, CE, EAC, TUV, UL |
| Standard Number | 508; 60950-1 |
Submit your RFQ for 56YSD100S-4802000 and get a quote within 24 hours.
