POWER CONDITIONER: ISOLATED POWE

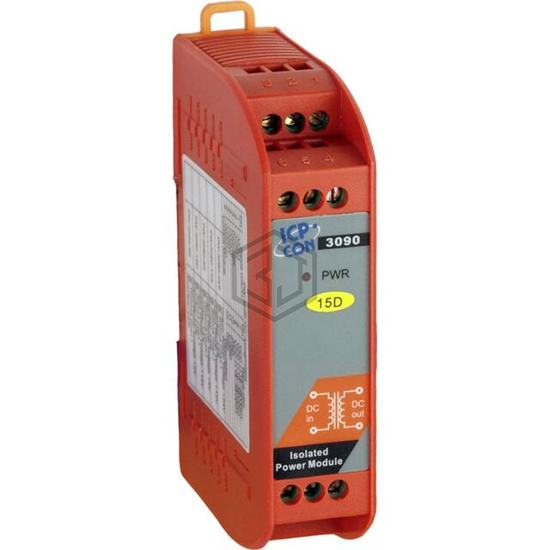

PW-3090-15D-R is a Industrial, DIN Rail Power Supplies manufactured by ICP DAS USA INC. POWER CONDITIONER: ISOLATED POWE. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 300mA, 300mA, size / dimension 2.76" L x 0.98" W x 4.49" H (70.0mm x 25.0mm x 114.0mm), number of outputs 2.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 2 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 300mA, 300mA |
| Power (Watts) | 9W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Efficiency | 83% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output |
| Size / Dimension | 2.76" L x 0.98" W x 4.49" H (70.0mm x 25.0mm x 114.0mm) |
| Approval Agency | CE, FCC |
| Standard Number | - |
Submit your RFQ for PW-3090-15D-R and get a quote within 24 hours.
