a 24V/1A Power Supply

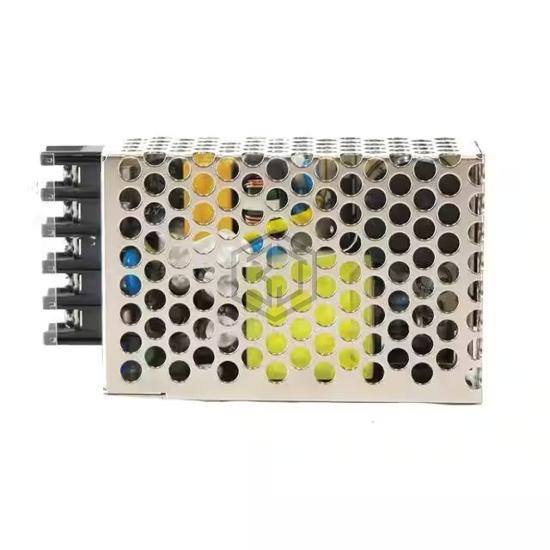

EPR-25-24 is a AC DC Converters manufactured by ICP DAS USA INC. a 24V/1A Power Supply. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 3.07" L x 2.01" W x 1.12" H (78.0mm x 51.0mm x 28.5mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | 24V |
| Voltage - Output 4 | 24V |
| Voltage - Output 5 | 24V |
| Voltage - Output 6 | 24V |
| Current - Output 1 | 1.1 A |
| Current - Output 2 | 1.1 A |
| Current - Output 3 | 1.1 A |
| Current - Output 4 | 1.1 A |
| Current - Output 5 | 1.1 A |
| Current - Output 6 | 1.1 A |
| Power (Watts) | 26W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 1.5 kV |
| Efficiency | 79% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.07" L x 2.01" W x 1.12" H (78.0mm x 51.0mm x 28.5mm) |
| Approval Agency | CE, CQC, TUV, UL |
| Standard Number | 60950-1 |
