NXP CORTEX-A53 I.MX 8M DUAL 1.5G

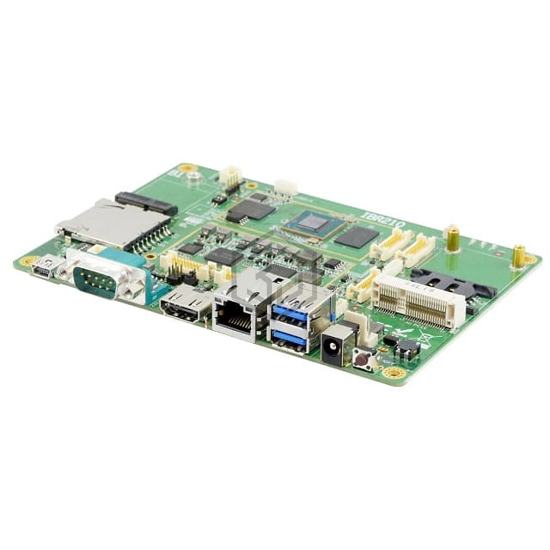

IBR210-D308 is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by iBASE Technology. NXP CORTEX-A53 I.MX 8M DUAL 1.5G. Key specifications: operating temperature 0°C ~ 70°C, size / dimension 5.8" x 4" (147.32mm x 101.6mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M4, i.MX8M Dual |
| Speed | 1.5GHz |
| Number of Cores | 1, 1, 2 |
| Power (Watts) | - |
| Cooling Type | - |
| Size / Dimension | 5.8" x 4" (147.32mm x 101.6mm) |
| Form Factor | 3.5" |
| Expansion Site/Bus | Audio, GPIO, I²C, LVDS,M.2, Mini-PCIe, MIPI CSI, MIPI DSI |
| RAM Capacity/Installed | 3GB/8GB |
| Storage Interface | eMMC, SD |
| Video Outputs | CSI, HDMI, LVDS |
| Ethernet | GbE |
| USB | USB 3.0 Type-A (2), USB OTG (1) |
| RS-232 (422, 485) | 1 |
| Digital I/O Lines | - |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | 0°C ~ 70°C |
Submit your RFQ for IBR210-D308 and get a quote within 24 hours.
