NXP I.MX6 CORTEX A9 DUAL-LITE 1G

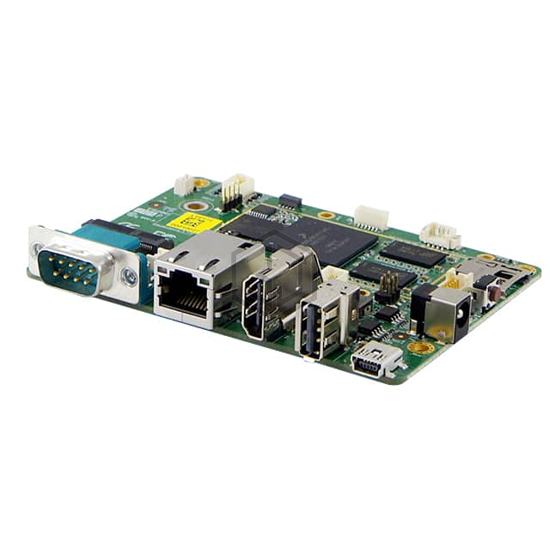

IBR115 is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by iBASE Technology. NXP I.MX6 CORTEX A9 DUAL-LITE 1G. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 3.94" x 2.83" (100.08mm x 71.88mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-A9, i.MX6DualLite |
| Speed | 1GHz |
| Number of Cores | 2 |
| Power (Watts) | - |
| Cooling Type | Heat Sink |
| Size / Dimension | 3.94" x 2.83" (100.08mm x 71.88mm) |
| Form Factor | 2.5" |
| Expansion Site/Bus | Audio, GPIO, LVDS, M.2, PCIe, UART |
| RAM Capacity/Installed | 1GB/4GB |
| Storage Interface | eMMC, microSD |
| Video Outputs | HDMI, LVDS |
| Ethernet | GbE |
| USB | USB Type-A (1), USB OTG (1) |
| RS-232 (422, 485) | 1 |
| Digital I/O Lines | - |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for IBR115 and get a quote within 24 hours.
