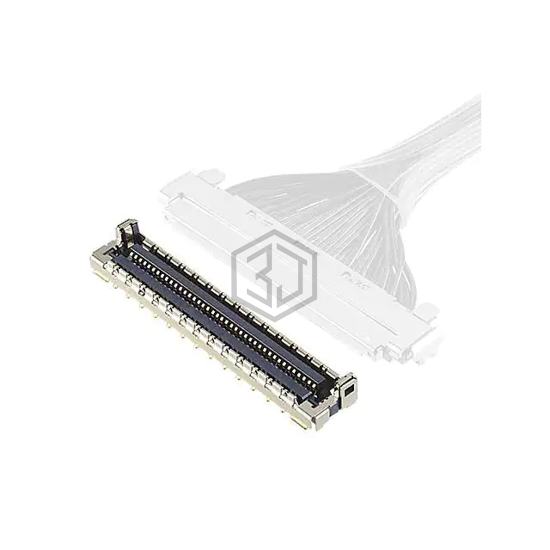

CABLINE-UM RECEPTACLE 30P
20879-030E-01 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by I-PEX. CABLINE-UM RECEPTACLE 30P. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 100V, termination Solder.
In Stock: 2,753
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | - |
| Style | Board to Cable/Wire |
| Number of Positions | 30 |
| Number of Positions Loaded | 30 |
| Pitch - Mating | - |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | - |
| Insulation Height | - |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Shielded, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | 100V |
Submit your RFQ for 20879-030E-01 and get a quote within 24 hours.
