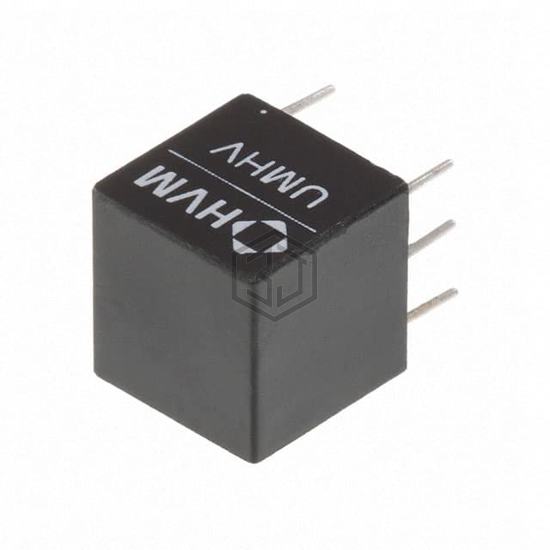

DC DC CONVERTER 1000V 500MW
UMHV1210 is a DC DC Converters manufactured by HVM Technology, Inc.. DC DC CONVERTER 1000V 500MW. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 70°C, package / case 5-DIP Module, current - output (max) 500µA.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500µA |
| Power (Watts) | 500 mW |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -55°C ~ 70°C |
| Efficiency | 55% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for UMHV1210 and get a quote within 24 hours.
