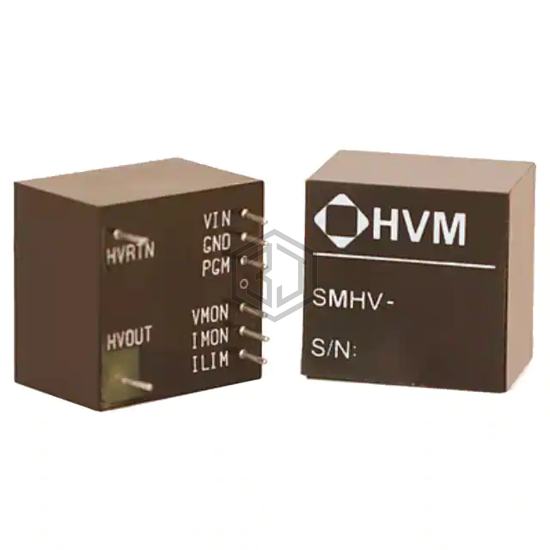

DC DC CONVERTER -8000V 1W
SMHV0580N is a DC DC Converters manufactured by HVM Technology, Inc.. DC DC CONVERTER -8000V 1W. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 70°C, package / case 9-DIP Module, current - output (max) 125µA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | -8000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 125µA |
| Power (Watts) | 1 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -55°C ~ 70°C |
| Efficiency | 60% |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module |
| Size / Dimension | 0.85" L x 0.85" W x 0.60" H (21.6mm x 21.6mm x 15.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SMHV0580N and get a quote within 24 hours.
