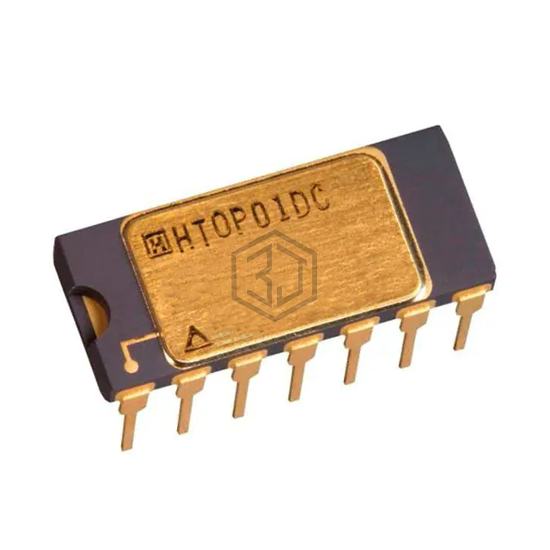

IC OPAMP ZERO-DRIFT 2CIRC 14CDIP
HTOP01DC is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Honeywell Aerospace. IC OPAMP ZERO-DRIFT 2CIRC 14CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 225°C (TA), package / case 14-CDIP (0.300", 7.62mm), current - output / channel 20 mA.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 1.5V/µs |
| Gain Bandwidth Product | 2 MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | - |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -55°C ~ 225°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP |
Submit your RFQ for HTOP01DC and get a quote within 24 hours.
