CONN HEADER SMD 10POS 1MM

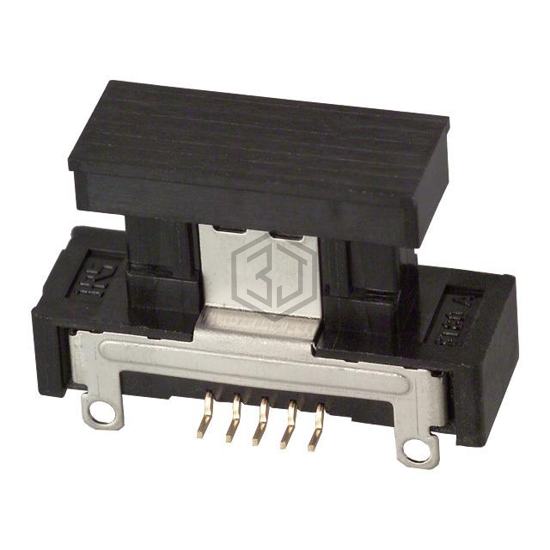

ST80X-10S(30) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER SMD 10POS 1MM. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 80°C, voltage rating 100V, contact material Copper Alloy.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Cradle |
| Contact Type | Non-Gendered |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.378" (9.60mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Mounting Flange, Shielded |
| Operating Temperature | -30°C ~ 80°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 100V |
Submit your RFQ for ST80X-10S(30) and get a quote within 24 hours.
